DESCRIPTION

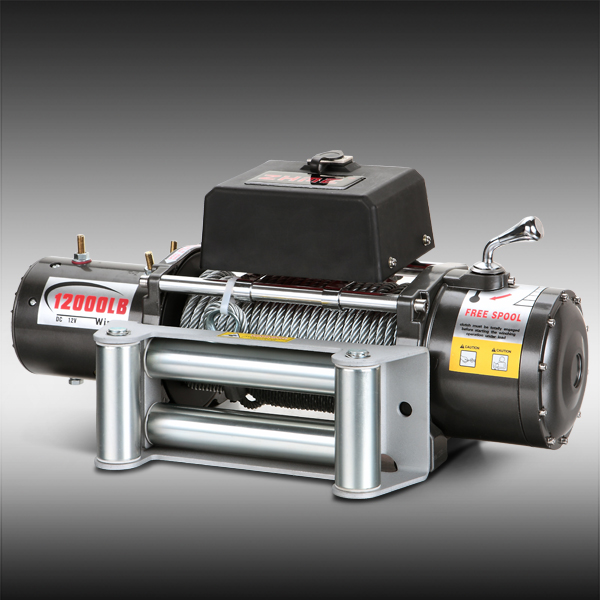

Popular series winches with good quality at a very competitive price. And this is a good choice for enter lever off-roader.
• 12V volt high performance series wound motor for power
and fast line speed.
• Durable, smooth, and reliable three-stage planetary gear train;
Gear ratio 218:1 and 265:1.
• Low-profile design will fit most trucks, JEEPs and SUVs.
• The black powder coat finish gives the winches housing protection from
all kinds of damage and will last for years.
• Low noise, reliable & stable performance braking system.
• Aircraft grade wire rope, or synthetic rope is optional.
• Remote switch &wireless remote control is alternative.
SPECIFICATION
| Rated line pull: | 12000lbs (5443kgs)single line | |||||||||
| Motor: | Series wound 6.0hp/4.4kw,12V DC 8.1hp/6.0kw,24V,DC | |||||||||
| Gear train: | 3stage planetary | |||||||||
| Gear ratio: | 265.：1 | |||||||||
| Clutch: | Sliding ring gear | |||||||||
| Braking action: | Automatic in the durm | |||||||||
| Fairlead: | 4-way roller fairlead | |||||||||
| Wire rope: | 3/8"×82'(9.5mm×25m) | |||||||||
| Durm size: | 2.5"×8.8"(63.5mm×223mm) | |||||||||
| Dimensions: | 21.1"×6.1"×7.7"(537mm×155mm×195mm) | |||||||||
| Mounting bolt pattern: | 10"×4.5"(254mm×114.3mm) | |||||||||
| Battery: | 650 CCA minimum for winching 25 square mm,72"(1.83m) | |||||||||
| N.W: | 81lbs(37kgs) | |||||||||
| Packing: | 620mm×360mm×260mm(420pcs 20'container) | |||||||||
| Line speed and motor current (first layer) | ||||||||||
| Line pull | Lbs | 0 | 4000 | 6000 | 10000 | 12000 | ||||
| Kgs | 0 | 1814 | 2722 | 4536 | 5443 | |||||
| Line speed | FPM 12V | 22 | 12.5 | 9.8 | 6.9 | 5.6 | ||||
| FPM 24V | 32.8 | 30 | 18 | 10.5 | 8.9 | |||||
| MPM 12V | 6.8 | 3.8 | 3 | 2.1 | 1.7 | |||||
| MPM 24V | 10 | 7 | 5.5 | 3.2 | 2.7 | |||||
| Motor current | Amps 12V | 80 | 170 | 210 | 310 | 360 | ||||
| Amps 24V | 45 | 70 | 95 | 185 | 240 | |||||
| Line pull and cable capacity | ||||||||||
| Layer of cable | 1 | 2 | 3 | 4 | | |||||
| Rated line pull per layer | Lbs | 12000 | 9900 | 8300 | 7000 | | ||||
| Kgs | 5443 | 4490 | 3765 | 3175 | | |||||
| Cable capacity per layer | Ft. | 19.6 | 42 | 72 | 82 | | ||||
| M | 6 | 13 | 22 | 25 | | |||||
DIMENSIONS
