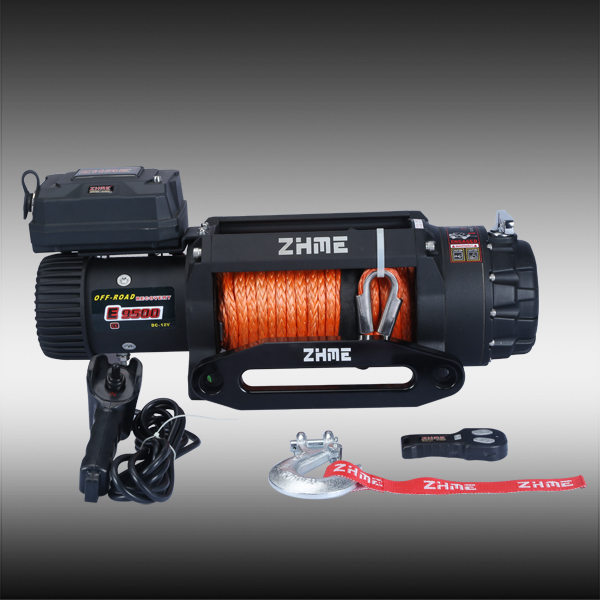

Off Road Electric Winch

  • E9500S

Availability:

DESCRIPITION

Genuine revolutionary innovation waterproof winches completely sealed heavy duty pulling, really perfect winch for serious off-roader. Suit for heavy trucks , suvs and jeeps.

  All sealed high performance motor delivers superior torque output and faster line speed.
  The brand new heavy – duty sealed contactor with silver alloy contacts allows higher duty cycle.
  ZHME patented oil seals with double lips fixed on drum supports for waterproof.
●  Automatic full load brake.
  Oversized tie rods strut for maximum strength. Laser your logos freely.

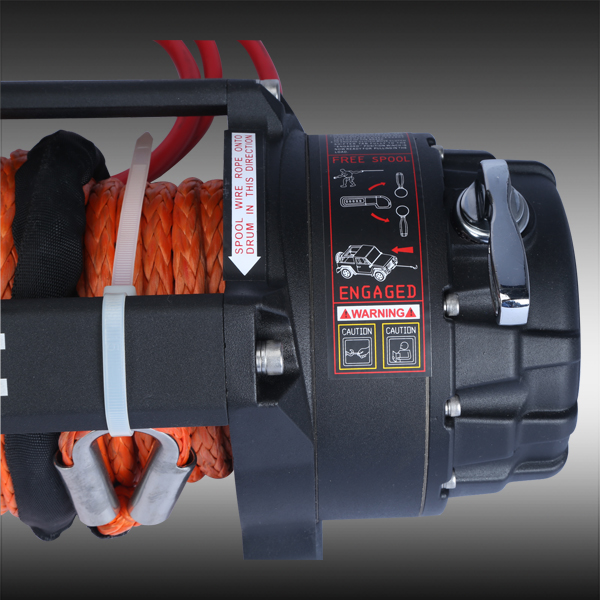

  Aluminum alloy clutch lever makes the operation easily.
  Revolutionary 3-stage Planetary Gear System for ultimate strength and quiet operation. Different gear ratio for options.
  Steel bushing prevents the gear box cover from grinding by end of driven shaft.
  Knurled drum special for synthetic rope.
●  IP68

3-STAGE PLANETARY GEAR TRAIN(E).jpg

oil seals.jpg

SPECIFICATION

Specifications
Rated line pull: 9500lbs (4310kgs)single line
Motor: Series wound 6.0hp/4.4kw,12V DC
Gear train: 3stage planetary
Gear ratio: 212.:1
Clutch: Sliding ring gear
Braking action: Automatic in the durm
Fairlead: Aluminum hawse fairlead
Synthetic rope: ø9.5mm×26m
Durm size: (63.5mm×223mm)
Dimensions: (574mm×170mm×198mm)
Mounting bolt pattern: 254mm×114.3mm
Battery: 650 CCA minimum for winching 25 square mm,72"(1.83m)
N.W: 66lbs(30kgs)
Packing: 620mm×200mm×390mm(400pcs 20'container)
Line speed and motor current (first layer)
Line pull Lbs 0 2000 6000 8000 9500
Kgs 0 907 2722 3629 4309
Line speed FPM 29.5 13.5 9.2 7.5 6.7
MPM 9 4.1 2.8 2.3 2.1
Motor current Amps 70 120 220 260 300
Line pull and cable capacity
Layer of cable
1 2 3 4
Rated line pull per layer Lbs 9500 8070 7250 6000
Kgs 4310 3660 3289 2994
Cable capacity per layer Ft. 17.7 40.7 67.9 85
M 5.4 12.4 20.7 26
Dimensions

DEIMENSIONS
