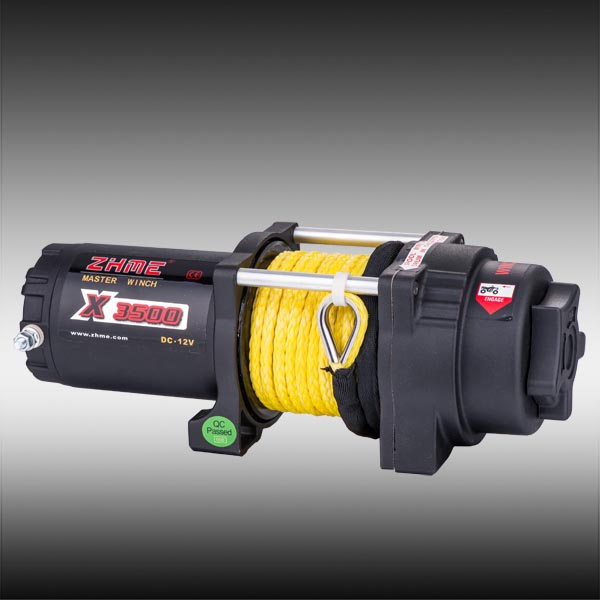

DESCRIPITION
If you are riding on the edge and pushing the limits on a ATV or Side x Side,you need a winch that’ll keep up.
Low current and high efficiency minimize battery drain.
Water resistance o ring seal keeps the winch working well through water.
Patented matching drum and gear assembly ensures quiet operation.
Stainless steel for strengthening threaded holes.
3 stage all metal gears for maximum strength.
Large and easy operation clutch lever.
Independent Mechanical brake system .
SPECIFICATION
| Rated line pull: | 3500lbs (1588kgs)single line | ||||||||
| Motor: | Permanent magnetic motor 1.5hp/1.0kw,12V DC | ||||||||
| Gear train: | 3stage planetary | ||||||||
| Gear ratio: | 198.：1 | ||||||||
| Braking action: | Automatic in the durm | ||||||||
| Fairlead: | Aluminum hawse fairlead | ||||||||
| Synthetic rope: | 5.5mm×10m | ||||||||
| Durm size: | 51mm×79mm | ||||||||
| Dimensions: | 323mm×125mm×115.5mm | ||||||||
| Mounting bolt pattern: | 124mm×76mm | ||||||||
| N.W: | 22lbs(10kgs) | ||||||||
| Packing: | 420mm×250mm×220mm(1000pcs 20'container) | ||||||||
| Line speed and motor current (first layer) | |||||||||
| Line pull | Lbs | 0 | 1000 | 2000 | 3000 | 3500 | |||
| Kgs | 0 | 454 | 907 | 1360 | 1589 | ||||
| Line speed | FPM | 16 | 10.5 | 9.2 | 7.2 | 5.9 | |||
| MPM | 4.9 | 3.2 | 2.8 | 2.2 | 1.8 | ||||
| Motor current | Amps | 15 | 70 | 10.5 | 135 | 150 | |||
| Line pull and cable capacity | ||||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||||
| Rated line pull per layer | Lbs | 3500 | 2870 | 2430 | 2100 | |||
| Kgs | 1598 | 1300 | 1100 | 950 | ||||
| Cable capacity per layer | Ft. | 6.9 | 15.1 | 24.9 | 32.8 | |||
| M | 2.1 | 4.6 | 7.6 | 10 | ||||
DEIMENSIONS
